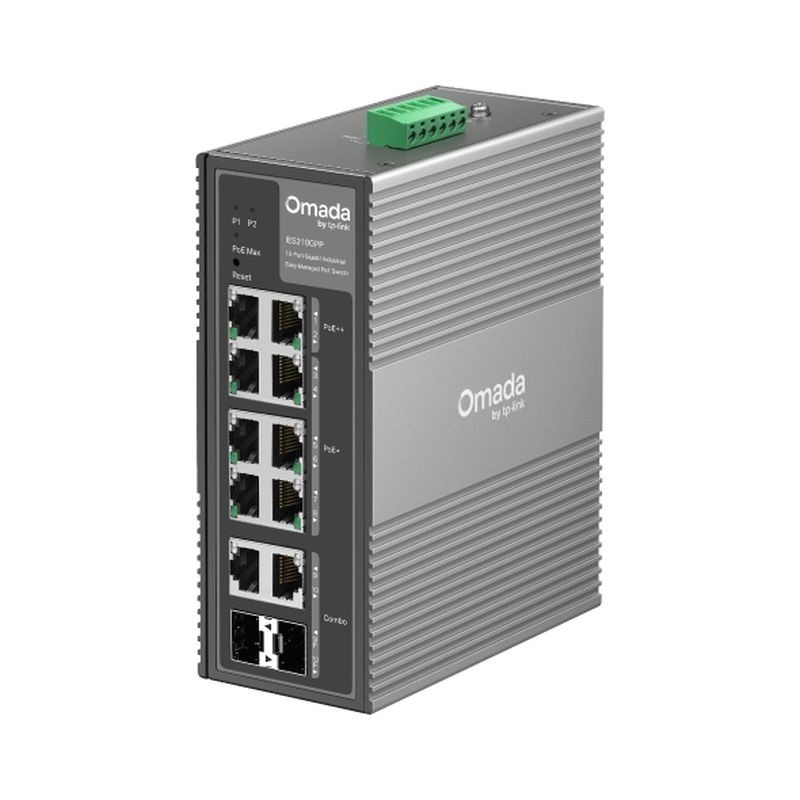

TP-LINK SWITCH OMADA IES210GPP 6 POE+ Y 2 POE++

Switch Industrial Omada Easy Managed con 6 puertos PoE+ y 2 puertos PoE++ 8× Puertos Gigabit RJ45 (2× PoE++, 6× PoE+) 2× Puertos RJ45/SFP Gigabit Combo 240W Potencia PoE Total* con hasta 60W para cada puerto PoE++ Diseño industrial: Temperatura Funcionamiento -40~75°C, 6kV Protección contra rayos y entrada de alimentación redundante 1+1 Gran cantidad de Funcionalidades: Hasta 250m de distancia PoE,** VLAN, QoS, y STP/RSTP Gestión Centralizada a través de interfaz web o de Omada App† Carcasa de aluminio resistente IP40 con montaje en rail DIN / Diseño de montaje en pared CARACTERÍSTICAS DE HARDWARE Interfaz • 2× 10/100/1000 Mbps PoE++ RJ45 Ports • 6× 10/100/1000 Mbps PoE+ RJ45 Ports • 2× Gigabit SFP/RJ45 Combo Slots • Auto-Negotiation/Auto MDI/MDIX Cantidad de Ventiladores Fanless Instalación • DIN-rail mounting • Wall mounting Bloqueo de Seguridad Físico v Fuente de Alimentación 12-57V 1+1 Redundant DC Power Input Puertos PoE (RJ45) • Standard: 802.3af/at/bt compliant • PoE++ Ports (802.3af/at/bt PoE): 2 Ports, up to 60W per port • PoE+ Ports (802.3af/at PoE): 6 Ports, up to 30W per port • PoE Budget: - 60W (Input: 12V / 7.2A - 21V / 3.7A)) - 120W (Input: 21V / 6.7A - 46V / 3.1A) - 240W (Input: 46V / 5.7A - 57V / 4.4A) Dimensiones 6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm) Surge Protection • ±6 kV in common mode for Ethernet ports • ±4 kV in common mode for DC power input ports RENDIMIENTO Capacidad de Conmutación 20 Gbps Tasa de Reenvío de Paquetes 14.88 Mpps Tabla de Direcciones MAC 8K Memoria del Buffer de Paquete 4 Mbit Jumbo Frame 15 KB CARACTERÍSTICAS DE SOFTWARE Calidad de Servicio • 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rate Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control Características L2 • Link Aggregation - Static Link Aggregation - Up to 4 aggregation groups and up to 6 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP • Spanning Tree - STP (802.1d) - RSTP (802.1w) Multicast L2 • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave VLAN • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID Método de Transmisión Store-And-Forward GESTIÓN Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Gestión Centralizada • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller Acceso a la nube Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Aprovisionamiento sin contacto Yes. Requires the use of Omada Cloud-Based Controller Funciones de gestión • Web-based GUI • DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† Otros Certificaciones FCC, CE, RoHS Contenido del Paquete • IES210GPP • DIN-Rail Mounting Bracket • Wall-Mounting Plates • Installation Guide Factores Ambientales • Operating Temperature: -40?~75? (-40?~167?) • Storage Temperature: -40?~85? (-40?~185?) • Operating Humidity: 5%~95% non-condensing • Storage Humidity: 5%~95% non-condensing
